Square Bottom Paper Bag Making Machine

Four Corner Square & Firm Bonding

The servo controlled four corner folding mechanism produces square, sturdy bags with excellent load bearing capacity. The four corners are flat and secure, and the bottom seal strength far exceeds industry standards. Integrated paper handle unit (optional): positioning accuracy of ≤±0.1 mm ensures that handles do not become misaligned or detach, even during high speed operation.

Up to 200 bags/min
<2 min changeover
+0.3mm accuracy

Technical Highlights

How do our technical highlights work for you?

The four corners are flat and secure, and the bottom seal strength far exceeds industry standards. Integrated paper handle unit (optional): positioning accuracy of ≤±0.1 mm ensures that handles do not become misaligned or detach, even during high speed operation.

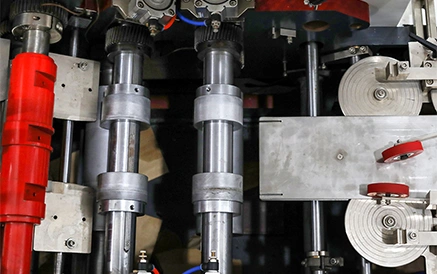

01. Optimised Conveyor System

An independent servo driven accordion style side fold pre folding mechanism has been added, with digitally adjustable side fold width, ensuring symmetrical and smooth folds on carrier bags without the need for manual edge adjustment in subsequent processes; the paper guide channel has been widened to accommodate large sized supermarket shopping bags and thick, laminated cardstock.

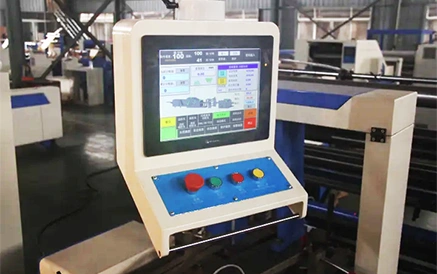

02. Multilingual touchscreen HMI

One touch switching between Chinese, English, Arabic and Russian to cater for international trade clients; digital storage of all parameters, including bag dimensions, operating speed, adhesive volume, tension, web guiding and creasing, with one touch access to over 100 bag profile presets, enabling even novices to operate the machine independently within two hours

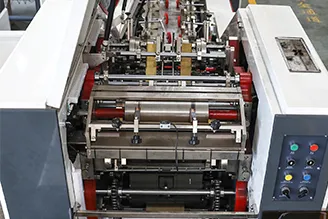

03. Optional Integrated Paper Cord Handle Attachment

Bag forming and handle attachment in a single moulding process, eliminating the need for 2–3 manual labourers in the subsequent handle attaching stage; handle positioning accuracy is ≤±0.1 mm, ensuring no misalignment or handle detachment even during high speed operation.

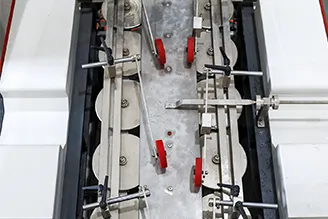

04. Integrated Four Sided Bottom Folding and Forming Mechanism

Servo controlled independent four fold bottom clamping plates complete bottom folding, gluing and compression moulding in a single operation, ensuring square, three dimensional corners on all four sides. The bottom's adhesive bond strength far exceeds industry standards, preventing food packaging bags and garment carrier bags from collapsing or delaminating even when fully loaded.

CE, ISO certified: multi group synchronized four bottom folding, load bearing capacity far exceeds industry standards, defect rate <0.03%.

Talk to Sales

Comparison of shortcomings with peers

At speeds exceeding 100 units per minute, the handles become crooked or fall off.
Most models require a separate, external handle attaching machine, involving two separate processes that require manual transfer.

Advantages of CHENQI

Handle positioning accuracy is ≤±0.1 mm, ensuring no misalignment or handle detachment even during high speed operation.
Bag forming and handle attachment are completed in a single step, eliminating the need for 2–3 workers to attach handles in subsequent processes.

FAQ

Find Q&A related to customization and services for solutions:

What bag sizes can this machine produce?

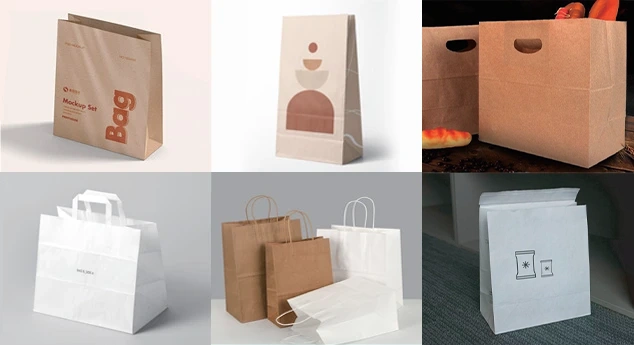

The machine produces bags from 80-550mm in width and 190-600mm in length, accommodating everything from small gift bags to large supermarket shopping bags and garment carriers.

How long does it take to change bag size?

≤2 minutes via touchscreen servo adjustment. All parameters: bag length, width, creasing depth, glue amount, are stored in recipes for one touch recall. No tools required.

What is the load bearing capacity of the finished bags?

Our four bottom folding mechanism delivers square, solid bags with bottom bonding strength far exceeding industry standards: able to hold heavy items without bottom collapse or glue failure.

Can it produce bags with window patches?

Yes. Optional window patching unit can be added for bags with transparent windows: ideal for retail and gift packaging where product visibility is required.
