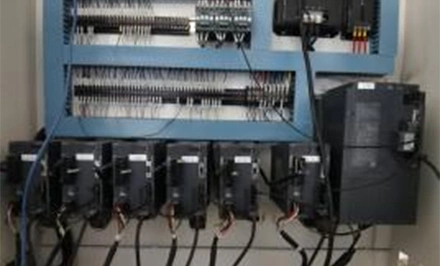

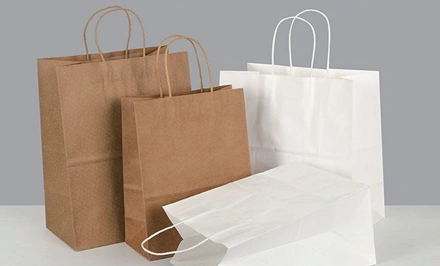

The equipment employs a PLC and motion controller working in tandem, combined with a servo drive control system and an intelligent operating interface. It boasts high production speed and efficiency, making it an ideal machine for packaging paper bags for food, cosmetics, wine, gifts, and clothing.

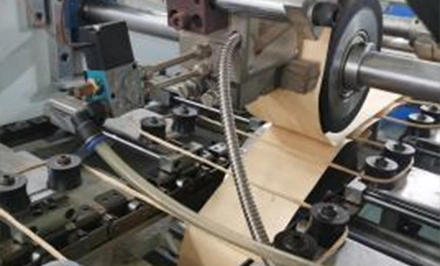

The machine's production process includes: Roll feeding → Handle attachment → Roll forming → Cutting → Bottom creasing → Bottom gluing → Bag bottom forming → Finished product output.
Basic Parameters
| Model | CQ-HD220 | CQ-HD330 | CQ-HD460 | CQ-HD550 |
|---|---|---|---|---|
| Paper tube length | 190-270 mm | 260-430 mm | 260-430 mm | 380-770 mm |
| Paper bag width | 120-220 mm | 220-330 mm | 260-460 mm | 220-550 mm |
| Bottom width of paper bag | 50-105 mm | 60-180 mm | 100-190 mm | 80-280 mm |
| Paper thickness | 50-120 gsm | 60-150 gsm | 60-150 gsm | 80-150 gsm |
| Bag making speed | 30-150 pcs/min | 30-150 pcs/min | 30-120 pcs/min | 30-130 pcs/min |
| Paper roll width | 320-900 mm | 1050 mm | 1350 mm | 630-1730 mm |
| Core inner diameter | Φ76 mm | Φ76 mm | Φ76 mm | Φ76 mm |
| Paper roll diameter | Φ1300 mm | Φ1300 mm | Φ1300 mm | Φ1300 mm |
| Air pressure | 0.6 mpa | 0.6 mpa | 0.6 mpa | 0.6 mpa |
| Machine power | 35 kw | 35 kw | 37 kw | 30 kw |
| Machine weight | 13000 kg | 15000 kg | 17000 kg | 23500 kg |
| Machine dimensions | 11000×6000×3100 mm | 11700×6500×3100 mm | 11700×6500×3100 mm | 15500×6200×3000 mm |
