Two Rolls Input A4/A3 Copy Paper Making Line

CY-1400-U2 Series

Two-Roll A4/A3 Copy Paper Cutting & Packing Line

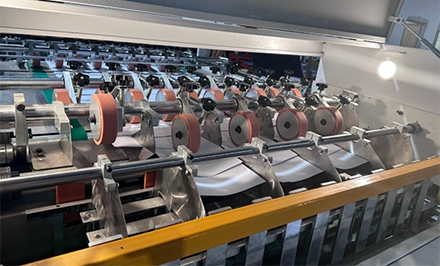

This machine is suitable for cross cutting and wrapping A4/A3 size paper. The cutter is equipped with a conveyor stacker that allows it to feed paper in reams of 500 sheets for efficient packaging by the wrapping machine. This ensures a seamless and streamlined workflow, maximizing productivity and minimizing downtime. This HBJ model is capable of handling A4/A3 paper sizes with high precision. With this model, you can expect faster turnaround times, increased productivity, and improved overall workflow efficiency.

Cutting size:
A3 (297×420 mm)
A4 (210×297 mm)
Cutting precision:
±0.2 mm
Cutting speed:
30-180 cuts/min

GET IN TOUCH

Fuselage wallboard thickness: 16 mm; ensure stable running.
All rubber rollers are made of polyurethane for long term use
All aluminum alloy guide rollers undergo dynamic balancing and hard oxidation.
All the knife shafts are made of #45 steel coated with hard chrome to 100 μm thickness, and dynamically balanced.
All electrical appliances comply with the China 3C certificate standard.

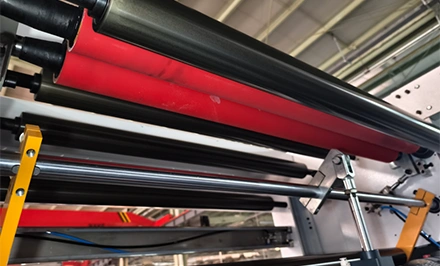

Servo motors synchronous control traction roller, which provides high precision.

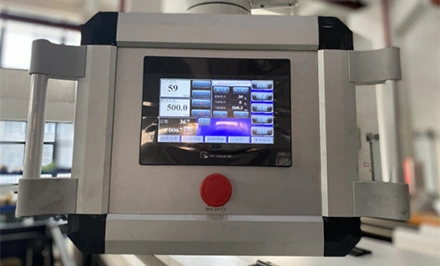

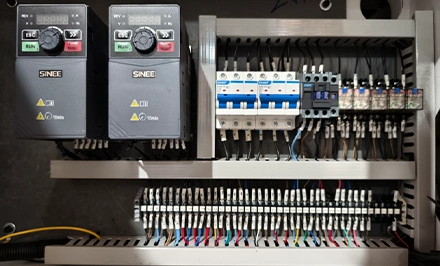

Japan Panasonic PLC control system touch screen brings much convenience for the operator; it has multi functions, like unwind diameter reached auto stop, cutting length setting, and so on.

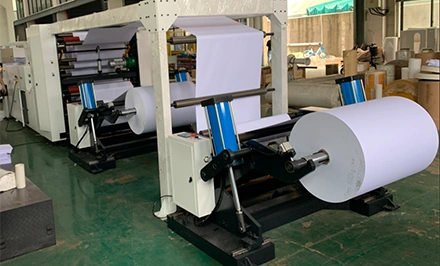

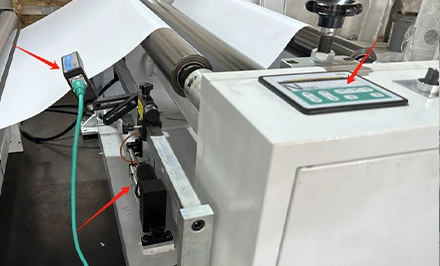

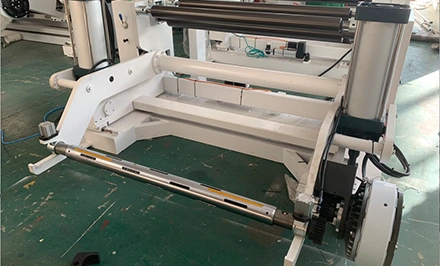

Shafted unwind with pneumatic auto loading for heavy jumbo rolls. Web Guide system with an ultrasonic sensor to correct the reel edge to guarantee exact feeding.

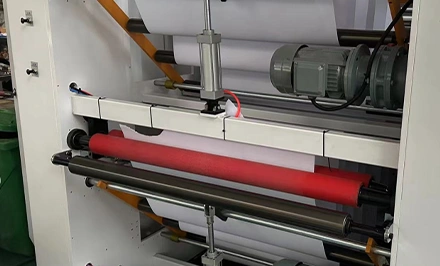

Pneumatic dancer roller unit for auto speed variation and assures that the stable web feeding under high speed running.

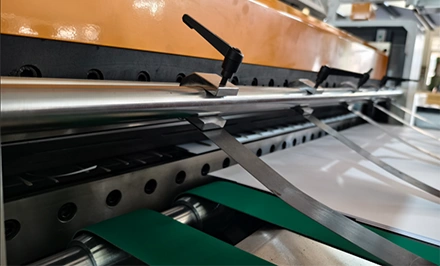

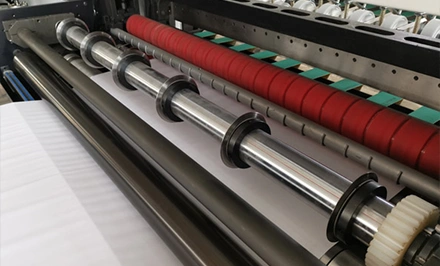

Heavy duty casting knife holder and high quality steel cutting knife ensure clean cutting quality and a long usage life.

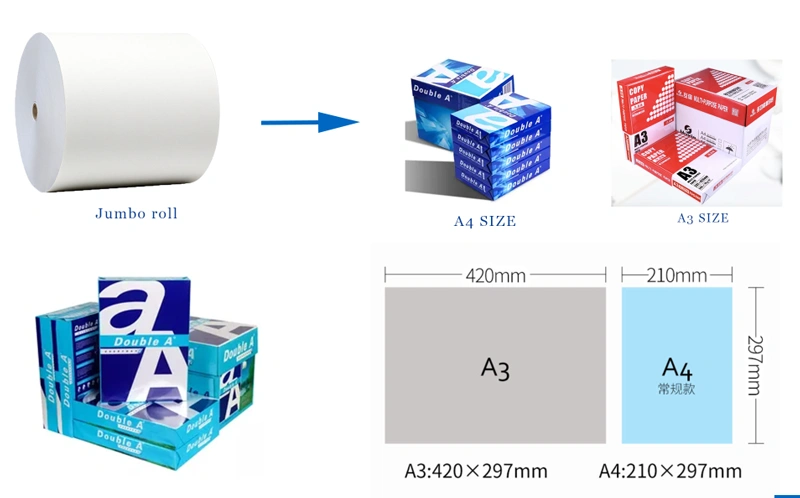

The fully automatic line, running from the jumbo roll, allows the machine to perform sheeting, conveying, and packing in a single process, resulting in the final A4/A3 packs.

Roll to Sheet Cutting Machine Basic Parameters

Model	CY-1100-U2 (Roll-to-sheet cutting machine)	CY-1400-U2 (Roll-to-sheet cutting machine)
Max. loading jumbo roll width (mm)	1100	1400
Max. loading jumbo roll diameter (mm)	Φ1400	Φ1400
Max. loading jumbo roll weight (kg)	1000	1000
Unwind paper tube inner core diameter	3” (76 mm)	3” (76 mm)
Web guide sensor	Ultrasonic sensor	Ultrasonic sensor
Cutting size	A3 (297×420 mm) or A4 (210×297 mm)	A3 (297×420 mm) or A4(210×297 mm)
Cutting precision	±0.2 mm	±0.2 mm
Cutting speed	30-180 cuts/min	30-180 cuts/min

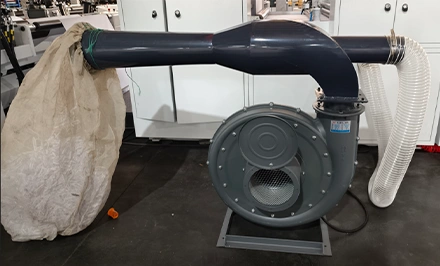

Edge trimming system	Blowing fan	Blowing fan
Cutting thickness	80-500 gsm	80-500 gsm
Total power	20 kW	22 kW
Power supply	380V, 3P, 50HZ	380V, 3P, 50HZ
Air supply	0.6-0.8 Mpa, 0.8m³/min	0.6-0.8 Mpa, 0.8m³/min
Weight	6800 kg	7000 kg
Overall Dimension (L×W×H)	15000×3000×1400 mm	15000×3000×1400 mm

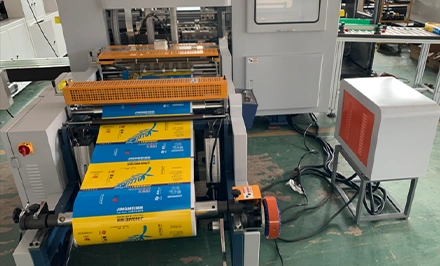

A4/A3 Size Packing Machine Basic Parameters

Model	CY-1100-U2 (A4 size packing machine)	CY-1400-U2 (A3 size packing machine)
Ream Size	210×297 mm	297×420 mm
Ream height	50-60 mm	50-60 mm
Ream Packing Speed	7-12 reams/min	7-12 reams/min
Paper grade	Copy paper, writing paper, offset paper etc.	Copy paper, writing paper, offset paper etc.
paper thickness	60-100gsm	60-100gsm
Roll core dia of wrapping paper	76 mm (3”)	76 mm (3”)
Max. Roll dia of wrapping paper	700 mm	700 mm
Wrapping paper	Laminated paper, coated paper, offset paper etc.	Laminated paper, coated paper, offset paper etc.
Requirement for wrapping paper	Stable speed, qualified paper, without splice in roll	Stable speed, qualified paper, without splice in roll
Glue requirement	Hot melt glue, 1kg can make nearly 2800-3000 packs	Hot melt glue, 1kg can make nearly 2800-3000 packs
Total power	11 kw	12 kw
Power supply	380V 50HZ 3phases	380V 50HZ 3phases
