Horizontal High-Speed Automatic Slitting Machine
WFQ Series

Horizontal High-Speed Automatic Slitting Machine

WFQ Series Horizontal High-Speed Automatic Slitting Machine is an efficient and precise coil slitting equipment, adopting a horizontal structure and high-speed slitting technology, suitable for various coiled materials such as BOPP, CPP, PVC, aluminum foil, and paper, and can realize precise edge trimming and slitting processing. The machine automatically completes the whole processes of unwinding, slitting, edge correction, and material collecting, equipped with an LPC edge correction control system and constant tension control. It features precise slitting, neat cutting edges, high speed, stable operation, easy operation, and convenient maintenance, widely used in packaging, printing, and other industries, suitable for various customized slitting needs of coiled materials.
  • Width of roll material cutting:
    30-1000 mm
  • Separating and cutting speed:
    5-160 mm
  • Deviation-rectifying error:
    ≤0.5 rmm
GET IN TOUCH
    Product Specifications

    Basic Parameters

    Model WFQ-1000 WFQ-1300
    Max width of separating and cutting roll material 1000 mm 1300 mm
    Max diameter of separating and cutting Roll material for unwinding Φ700 mm Φ1000 mm
    Max diameter of separating and cutting Roll material for rewinding Φ500 mm Φ500 mm
    Width of roll material cutting 30-1000 mm 30-1300 mm
    Separating and cutting speed 5-160 m/min 5-160 m/min
    Deviation-rectifying error ≤0.5 rmm ≤0.5 rmm
    Total power 3 kw 4.8 kw
    Outline dimension (L×W×H) 2540×1170×1460 mm 2540×1370×1460 mm
    Weight 2000 kg 2800 kg

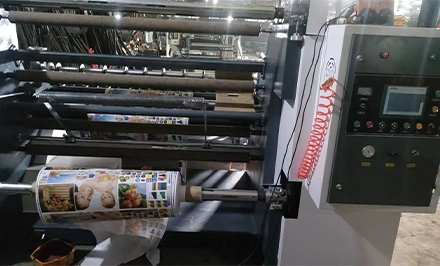

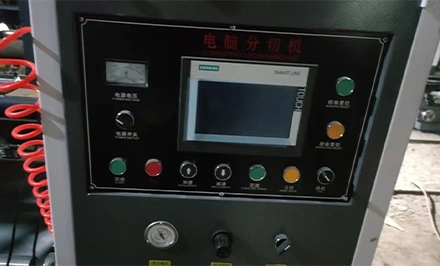

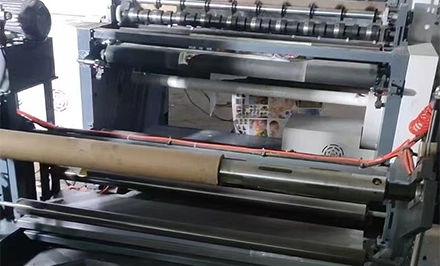

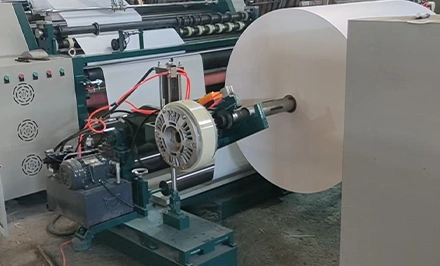

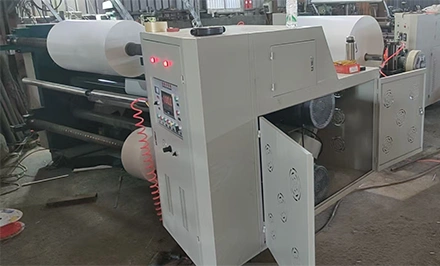

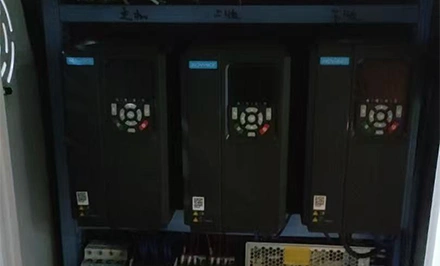

    Product Details
