SOS Square Bottom Paper Bag Machine
CQ-220/330/460/550 Series

SOS Square Bottom Paper Bag Machine

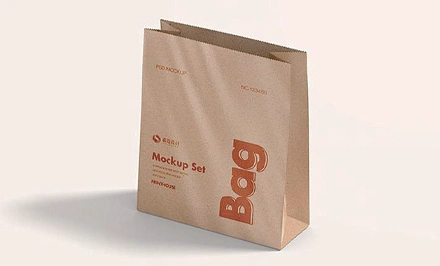

The CQ servo square bottom paper bag machine is professionally designed for mass production of oversized, double layered and foldable square bottom eco friendly paper bags. It processes unprinted or printed double layer paper rolls, and automatically completes a full set of processes including double layer paper bonding, edge gluing, tube forming, cutting, creasing, bottom gluing, bag bottom shaping, conveying, and bag folding.
  • Paper tube length:
    190-370 mm
  • Paper bag width:
    80-220 mm
  • Paper thickness:
    50-120 gsm
GET IN TOUCH
    Product Overview

    All procedures are finished synchronously in one step with full automatic operation, which greatly saves labor costs and realizes intelligent production.



    Equipped with an original imported servo electric control system, the machine features fast running speed and stable performance. It shortens the adjustment time of different paper bag sizes effectively. The finished paper bags own high precision, neat appearance and strong structural stability. With a reasonable overall structure, simple maintenance and high production capacity, this machine is an ideal solution for efficient and large scale production of environmentally friendly paper bags.

    Product Overview Video
    Product Specifications

    Basic Parameters

    Model CQ-220 CQ-330 CQ-460 CQ-550
    Paper tube length 190-370 mm 260-530 mm 260-530 mm 380-770 mm
    Paper bag width 80-220 mm 140-330 mm 220-460 mm 220-550 mm
    Bottom width of paper bag 50-105 mm 60-180 mm 80-180 mm, 100-190 mm 80-280 mm
    Paper thickness 50-120 gsm 60-150 gsm 60-150 gsm 80-150 gsm
    Bag making speed 30-200 pcs/min 30-200 pcs/min 30-180 pcs/min 30-150 pcs/min
    Paper roll width 670 mm 320-1050 mm 1350 mm 630-1730 mm
    Core inner diameter Φ76 mm Φ76 mm Φ76 mm Φ76 mm
    Paper roll diameter Φ1300 mm Φ1300 mm Φ1300 mm Φ1500 mm
    Air pressure 0.6 mpa 0.6 mpa 0.6 mpa 0.6 mpa
    Machine power 3phase 4line 380V. 15kw 3phase 4line 380V. 15kw 3phase 4line 380V. 15kw 3phase 4ine 380V. 15kw
    Machine weight 6000 kg 8000 kg 10000 kg 12000 kg
    Machine dimensions 8000×2700×2000 mm 9200×2800×2000 mm 9200×3000×2000 mm 11500×4300×2200 mm
    Optional Upgrades
    Online Printing Unit
    Online Printing Unit
    Online Printing Unit
    Online Printing Unit
    Window Pasting Device
    Window Pasting Device
    Handle Making Machine / Handle Attaching Machine
    Handle Making Machine / Handle Attaching Machine
    Handle Making Machine / Handle Attaching Machine
    Handle Making Machine / Handle Attaching Machine
    Handle Making Machine / Handle Attaching Machine
    Handle Making Machine / Handle Attaching Machine
    Handle Making Machine / Handle Attaching Machine
    Handle Making Machine / Handle Attaching Machine
    Conveying Table
    Conveying Table
    Product Details

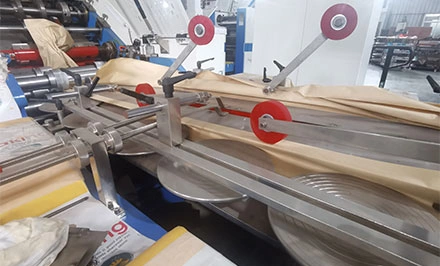

    Insert Structure

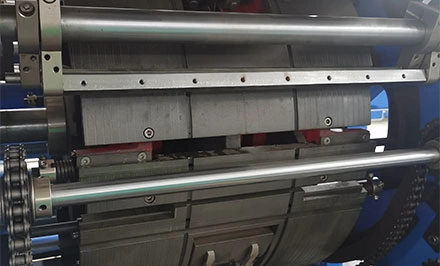

    Drum

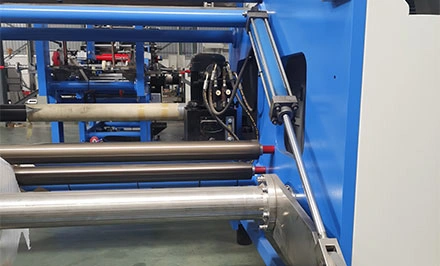

    Automatic Loading

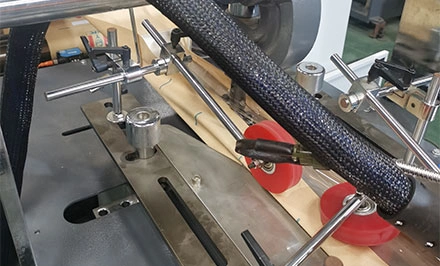

    Hot Melt Adhesive Pipe

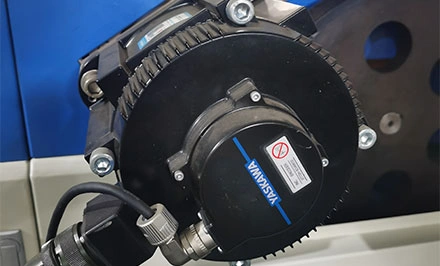

    Traction Motor

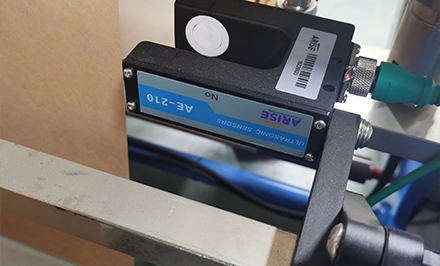

    Correction Sensor

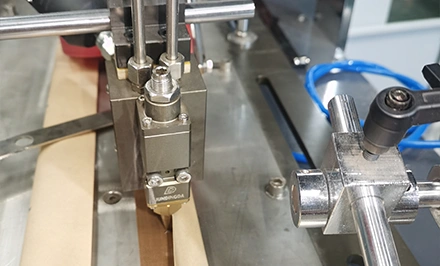

    Hot melt gun

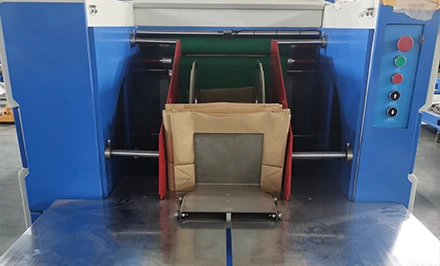

    Collection Method

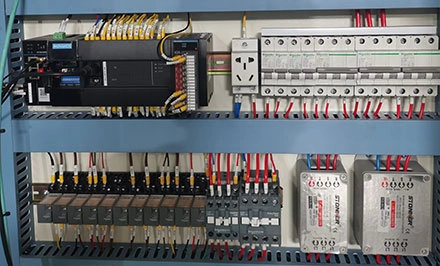

    Electrical Element
