ABA Film Blowing Machines

ABA Three Layer Coextrusion – Maximum Value, Maximum Output

The ABA three layers Co-Extrusion film blowing machine is the industry's cost performance leader the most versatile and widely used model in the market. With two extruders producing three layers ABA, the core layer can be filled with 60-70% recycled material, saving 300-800 CNY per ton. Exclusive barrier design prevents filler penetration to surface layers no grayish film, no print quality loss.

60% -70% recycled conten
300-800 CNY/ton savings
Anti-penetration layer design
One-touch AAA switch

Explore Our ABA Film Blowing Machine Series

ABA CO-EX AUTO

ABA Film Blowing Machine

ABA film blowing machine is an advanced piece of equipment widely used in the field of plastic film manufacturing.

ABA CO-EX

ABA Film Blowing Machine

ABA film blowing machine is an advanced piece of equipment widely used in the field of plastic film manufacturing.

Technical Highlights

How do our technical highlights work for you?

High fill products offer excellent adaptability, no interlayer bleeding, attractive finished products, stable production capacity, and low power consumption; their long-term mass production costs are significantly lower than those of competitors.

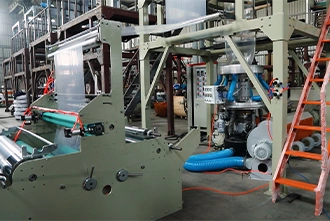

01. High-Filled Core

Core layer stable with 60-70% recycled content – saves 300-800 CNY/ton

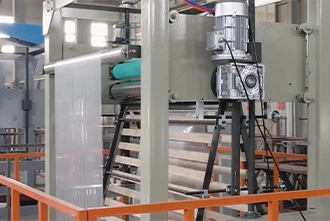

02. Anti-Penetration Barrier

Exclusive Isolation and Separation Layer—Filler Does Not Penetrate the Surface Layer

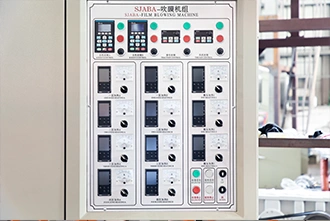

03. One-Key AAA Switch

Instant switch to full AAA (100% virgin) mode

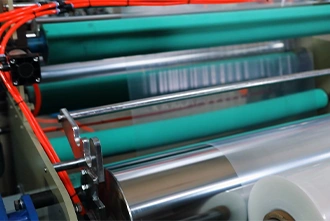

04. Courier Bag Optimized

Exclusive screw + haul-off parameters – no edge cracking, strong heat seal

CE certified ABA three-layer co-extrusion film blowing machine. ISO 9001 quality with 60-70% recycled core content for significant cost savings.

Talk to Sales

Advantages compared with competitors

Comparison of shortcomings with peers

Core Layer Fill Rate:30-40% – limited savings
Surface Quality:Filler penetrates – grayish film
Recycled Material Processing:Frequent breaks – unstable
Mode Switching:Cannot switch to AAA
Thickness Tolerance:±4-8%

Advantages of CHENQI

Core Layer Fill Rate:60-70% – saves 300-800 CNY/ton
Surface Quality:Anti-penetration barrier – clean surface
Recycled Material Processing:Stable 24/7 – dedicated screw design
Mode Switching:One-key switch – flexible production
Thickness Tolerance:≤±2% – intelligent air ring + rotating die

FAQ

Find Q&A related to customization and services for solutions:

What is the ABA structure and how does it save cost?

ABA uses two extruders producing three layers – A (surface) and A (surface) share one extruder, B (core) uses the second extruder. The core layer can be filled with 60-70% recycled material, saving 300-800 CNY per ton compared to using 100% virgin material.

What is the maximum recycled content the core layer can handle?

The core B layer can be filled with 60%–70% recycled material—saving 300–800 RMB per metric ton of film. Our proprietary barrier layer prevents the filler from seeping into the outer layer.

Does the filler penetrate the surface layers?

No. Our unique barrier layer prevents filler migration—ensuring that the top layer remains clean, printable, and heat-sealable, without any grayish discoloration or deterioration in print quality.

Can it switch to full AAA mode?

Yes. One-touch switch to full AAA (100% virgin) mode – giving you the flexibility to produce both high-end films and cost-effective films on the same machine.

What applications is ABA best for?

ABA machines are ideal for courier bags, takeout bags, supermarket vest bags, garbage bags, and protective film – the most versatile and widely used coextrusion configuration in the market.

The CHENQI Making the Difference

Tailored for your success

With years of engineering experience, we provide an ABA film blowing machine configuration that exactly meets your film width, thickness, and output requirements – optimal film quality with maximum material savings.

Invest today – benefit long-term

Ready for the future: flexibly process high-filled recycled materials in the core layer while maintaining clean, printable surface layers – from courier bags to garbage bags. One machine, unlimited possibilities. Your ABA solution grows with your business.

One-stop integration

From extrusion to winding – we at CHENQI see ourselves as your central partner for seamless end-to-end compatibility. Our ABA machines are optimized for high-speed bag making lines, ensuring consistent film quality for downstream converting.
