A typical production process for this equipment is: Roll paper unwinding → Straightening → D-shaped handle punching and gluing → Paper roll forming → Fixed-length cutting → Bottom creasing → Bottom gluing → Bag bottom forming → Finished product output.

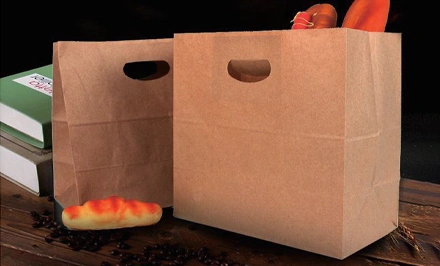

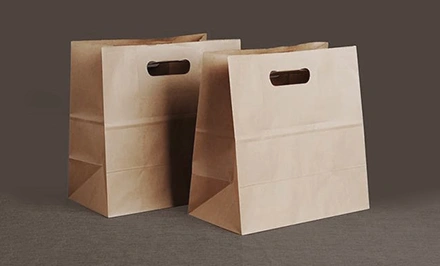

"D-cutting" refers to the punching and patch gluing process for the handle area—the equipment punches D-shaped holes at designated locations on the paper and automatically glues reinforcing paper pieces and paper rope to form a sturdy handle.
Basic Parameters
| Model | CQ-DC230 | CQ-DC550 |
|---|---|---|
| Roll paper width | 420-1090 mm | 670-1290 mm |
| Max. dia of roll paper | Φ1500 mm | Φ1500 mm |
| Inside diameter of paper | Φ76 mm | Φ76 mm |
| Paper gram | 60-150 g/m² | 70-150 g/m² |
| Finished bag width | 130-350 mm | 220-450 mm |
| Paper tube length | 260-530 mm | 280-630 mm |
| Bag bottom width | 65-180 mm | 80-220 mm |
| Paper patch width | 100-150 mm | 100-150 mm |
| Paper patch length | 50-100 mm | 50-100 mm |
| Paper patch gram | 80-200 g/m² | 80-200 g/m² |
| Max production speed | 150-200 bags/min | 150-200 bags/min |
| Total power | 26 kw | 28 kw |
| Weight | 12500 kg | 13000 kg |
| Overall dimensions | 14000×3300×1900mm | 14500×3500×1900 mm |
