YT‑S Series

Synchronous Belt High Speed Flexo Printing Machine

Name: Synchronous Belt High Speed Flexo Printing Machine
Brand: CHENQI
SKU: 00015
Rating: 4.9 (58 reviews)

YT‑S Series Synchronous Belt High Speed Flexo Printing Machine is a stack type, full synchronous belt driven mid to high speed flexographic press.

Printing colors:
2-6 colors (stack‑type)
Max printing width:
560/760/960/1160 mm
Printing speed:
30-120 m/min

GET IN TOUCH

Product Overview

It features accurate color registration, high speed, low noise, and easy maintenance, ideal for printing on paper bags, paper plastic laminates, films, nonwovens, and other roll materials. It is a mainstream choice for food packaging, supermarket shopping bags, and gift bags.

Features

Synchronous Belt Drive: Replaces traditional gears with full synchronous belt drive, ensuring stable linear speed during start/stop, registration accuracy ±0.15mm, low noise, minimal vibration, and no gear wear issues over long term use.
High Efficiency: Mechanical speed 120–140m/min, practical printing speed 80–120m/min. Equipped with hydraulic plate lifting, automatic web guide, closed loop tension control for fast roll/plate changes and minimal downtime.

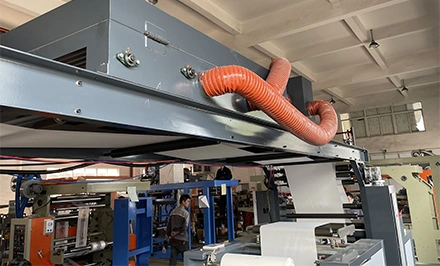

Powerful Drying: Large independent oven with dual side air blowing + central constant temperature; hot air internal circulation saves energy. Ink dries instantly post print, preventing blocking and smudging. Compatible with water based/alcohol based inks.
Wide Material Compatibility: Prints on 20–350g paper, kraft paper, food grade coated paper, PE/PP film, nonwovens. Common widths: 600/800/1000mm (max material width), printing width 560/760/960mm.

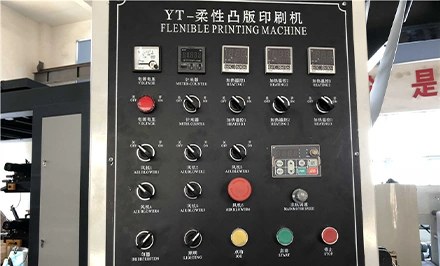

Smart & Reliable: PLC + touchscreen, 360° longitudinal registration, auto stop for web break/count completion, pre start alarm. Ceramic anilox rolls with hard chrome plating, hard anodized and dynamically balanced guide rollers for durability and easy maintenance.

Product Specifications

Typical Specifications (YT‑S Series)

Model	YT‑S Series
Printing Colors	2-6 colors (stack type)
Max Material Width	600/800/1000/1200 mm
Max Printing Width	560/760/960/1160 mm
Mechanical Speed	120-140 m/min
Printing Speed	30-120 m/min
Registration Accuracy	±0.15 mm (longitudinal/transverse)
Rewind/Unwind Diameter	Φ1000 mm (core Φ76mm)
Tension Control	Fully automatic closed oop
Plate Lifting	Fully hydraulic
Drying Power	~15 kW (dual side blowing)
Main Motor	5.5 kW (variable frequency)

YT-S Basic Parameters

Model	YT-600	YT-800	YT-1000
Max. width of substrate	600 mm	800 mm	1000 mm
Max. printing width	560 mm	760 mm	960 mm
Printing materials	PE, PP Film/ Paper/ Woven bag/ Non-woven
Printing speed	120 m/min	120 m/min	120 m/min
Plate thickness	1.14-3.94	1.14-3.94	1.14-3.94
Weight of machine	5000	5500	6000
Machine size (L×W×H)	6.8×1.8×2.9 m	6.8×2×2.9 m	6.8×2×2.9 m

Optional Upgrades

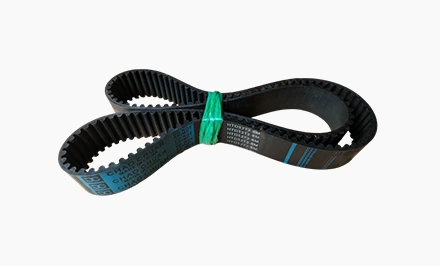

Synchronous Belt Drive

Static Image

Corona Treater

Ceramic Anilox Roller

Closed Doctor Blade

Product Details

REQUEST A QUOTE FOR YOUR MACHINES

You receive a quote this machine according to standard configuration.

REQUEST NOW
