YT Series

Gear Driven High Speed Flexo Printing Machine

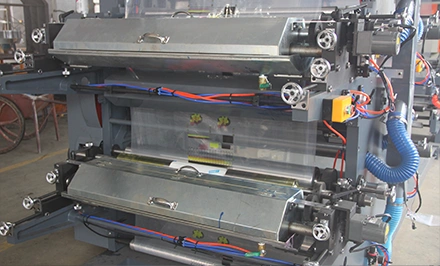

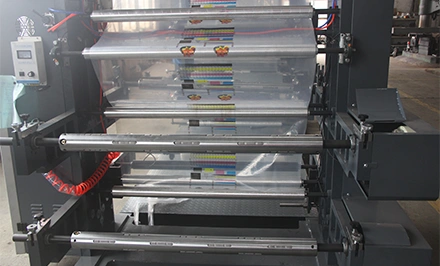

YT Series Gear Driven High Speed Flexo Printing Machine is a stack type, all-gear-driven classic flexographic press.

Printing colors:
2-6 colors (stack type)
Max printing width:
560/760/960 mm
Printing speed:
50-80 m/min

GET IN TOUCH

Product Overview

It features stable durability, accurate color registration, low cost, and easy maintenance, ideal for printing on paper bags, paper plastic laminates, films, nonwovens, and other roll materials. It is a cost effective mainstream choice for food packaging, supermarket shopping bags, and gift bags.

All Gear Drive: The main drive adopts high precision helical gears for direct power transmission, high torque, and fast response. Compared with synchronous belts, it is more stable under heavy loads, has no long term slippage, and has lower maintenance costs, suitable for high intensity continuous production.
Stable & Efficient: Mechanical speed 80–100m/min, practical printing speed 50–80m/min. Equipped with pneumatic plate lifting, automatic web guide, tension control for fast roll/plate changes, adapting to small to medium batches with frequent job changes.
Accurate Registration: Gear closed loop drive + 360° longitudinal registration, registration accuracy ±0.20mm. No obvious deviation during start/stop/speed changes, meeting high requirement printing for text, dots, and solids.
Reliable Drying: Independent oven with hot air circulation + constant temperature control, compatible with water based/alcohol based inks. Ink dries instantly post print to prevent blocking and smudging; automatic heat cut off when stopped for energy saving and safety.
Wide Material Compatibility: Prints on 20–300g paper, kraft paper, food grade coated paper, PE/PP film, nonwovens. Common widths: 600/800/1000mm (max material width), printing width 560/760/960mm.

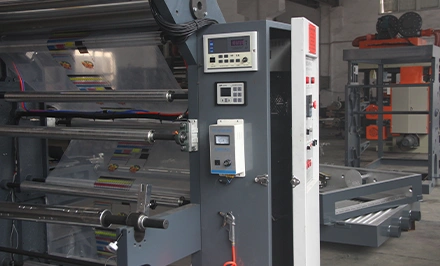

Smart & User Friendly: PLC + touchscreen, auto stop for web break/count completion, pre start alarm, variable frequency speed regulation. Ceramic anilox rolls with hard chrome plating, hard anodized and dynamically balanced guide rollers for durability and easy maintenance.

Typical Specifications (YT Gear Driven Series)

Model	YT Gear‑Driven Series
Printing Colors	2-6 colors (stack type)
Max Material Width	600/800/1000 mm
Max Printing Width	560/760/960 mm
Mechanical Speed	80-100 m/min
Printing Speed	50-80 m/min
Registration Accuracy	±0.20 mm (longitudinal/transverse)
Rewind/Unwind Diameter	Φ450 mm (core Φ76mm)
Tension Control	Fully automatic
Plate Lifting	Fully pneumatic
Drying Power	~10 kW (hot air circulation)
Main Motor	5.5 kW (variable frequency)

YT Basic Parameters

Model	YT-2600	YT-2800	YT-21000
Max width of substrate	600 mm	800 mm	1000 mm
Max printing width	560 mm	760 mm	960 mm
Range of printing length	200-1100 mm	180-1000 mm	200-1100 mm
Max diameter of web	Φ450 mm	Φ450 mm	Φ450 mm
Printing speed	5-50 m/min	5-50 m/min	5-50 m/min
Outline dimension (L×W×H)	1900×1800×2300 mm	1900×2000×2300 mm	1900×2200×2400 mm
Plate thickness (both sides adhesive tape included)	2.38 mm	2.38 mm	2.38 mm

Model	YT-4600	YT-4800	YT-41000
Max width of substrate	600 mm	800 mm	1000 mm
Max printing width	560 mm	760 mm	960 mm
Range of printing length	200-1100 mm	200-1100 mm	200-1100 mm
Max diameter of web	Φ450 mm	Φ450 mm	Φ450 mm
Printing speed	5-50 m/min	5-50 m/min	5-50 m/min
Outline dimension (L×W×H)	4200×1600×2400 mm	4200×1800×2400 mm	4200×2000×2400 mm
Plate thickness (both sides adhesive tape included)	2.38 mm	2.38 mm	2.38 mm

Model	YT-6600	YT-6800	YT-61000
Max width of substrate	600 mm	800 mm	1000 mm
Max printing width	560 mm	760 mm	960 mm
Range of printing length	200-1100 mm	200-1100 mm	200-1100 mm
Max diameter of web	Φ450 mm	Φ450 mm	Φ450 mm
Printing speed	5-50 m/min	5-50 m/min	5-50 m/min
Outline dimension (L×W×H)	4200×1660×2950 mm	4200×1860×2950 mm	4200×2060×2950 mm
Plate thickness (both sides adhesive tape included)	2.38 mm	2.38 mm	2.38 mm
