CQST Series

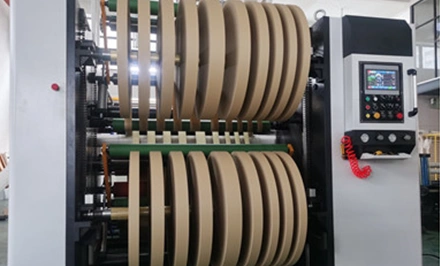

High-Speed Paper Roll Slitting Machine

Name: High-Speed Paper Roll Slitting Machine
Brand: CHENQI
SKU: 00079
Rating: 4.9 (90 reviews)

This machine is suitable for a lot of paper, such as 15-500g/m², paper & film laminated, PET/PVC, etc., the best jumbo roll cutting machine.

Max. Material width:
1300 mm
Precision of Slitting:
±0.2 mm
Cutting speed:
30-500 m/min

GET IN TOUCH

Features

The machine uses a servo three-motor synchronized control, auto tape tension, and center and surface rewinding together.
Machine use frequency adjust speed, keep stable running when speed is increased.
Auto counter quantity, auto fixed length, auto machine stop when had alarm, auto tension control, etc.

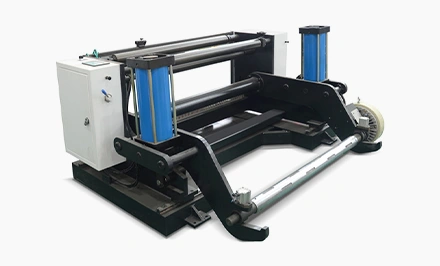

Feeding roll uses an air shaft use 3#(76mm paper tube core).

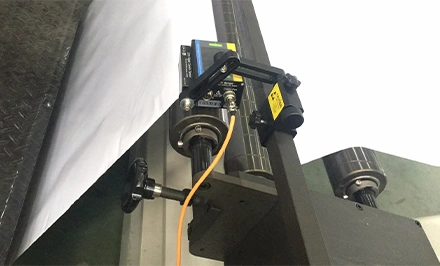

Rewinding uses photocell control edge position control way.

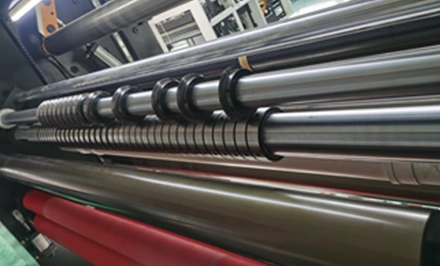

Circular knife slitting waste edge of roll, and it’s auto let out by a fan.

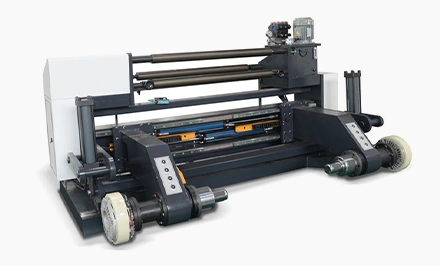

Automatic unwinding part.

Product Specifications

Basic Parameters

Model	CQST-1300	CQST-1600	CQST-1800
Max. Material width	1300 mm	1600 mm	1800 mm
Max.Unwinder Diameter	Φ1400 mm	Φ1400 mm	Φ1400 mm
Max.Rewinder Diameter	Φ1000 mm	Φ1000 mm	Φ1000 mm
Min. Rewind Material Width	30 mm	30 mm	30 mm
Slitting Speed	30-500 m/min	30-500 m/mIn	30-500 m/min
Precision of Slitting	±0.2 mm	±0.2 mm	±0.2 mm
Cutting Thickness	15-500 g/m²	15-500 g/m²	15-500 g/m²
Total Power	26 kw	26 kw	38 kw
Machine Weight	4500 kg	5200 kg	6000 kg
Outline Dimension (L×W×H)	4500×2800×1950 mm	4500×3200x1950 mm	4500×3800×1950 mm

Product Details

REQUEST A QUOTE FOR YOUR MACHINES

You receive a quote this machine according to standard configuration.

REQUEST NOW
