Automatic Sizing Cutting Machine
HKZ-1600 Series

Automatic Roll-to-Sheet Cutting Machine

This machine is suitable for a variety of plastic flexible packaging paper 60-500g/m², such as double adhesive paper, white paper jam, copper plate paper, film paper, paper plastic composite materials, stickers, and other reel materials for lateral cutting.
  • Max. unwinding diameter:
    Φ1500mm (Customizable)
  • Max. cutting width:
    1600 mm
  • Cutting speed:
    40-180 times/min
GET IN TOUCH
    Features
    • Main engine frequency adjusts speed, PLC touch screen control system, auto counter quantity, auto fixed length, auto machine stop when had alarm, auto tension control, etc.
    • The feeding roll uses an auto loading system (shafts 3-6#)
    • The frame adopts a 16-thick high-quality steel plate structure, the cross-cutting knife holder adopts a heavy casting structure, and the guide roller uses static balance to deal with the aluminum alloy guide roller
    • The receiving platform is a normal automatic finished materials table, controlled by a motor.
    Product Specifications

    Basic Parameters

    Model HKZ-1600 (Single Roll)
    Max.Diameter of Unwinding Φ1500 mm (Customizable)
    Max. Cutting Width 1600 mm
    Cutting Length 300-1200 mm Standard
    Cutting Speed 40-180 times/min
    Cutting Precision ±0.2 mm
    Total Power 14 kw
    Machine Weight 5700 kg
    Machine Size (L×W×H) 5600×3300×1900 mm
    Product Details

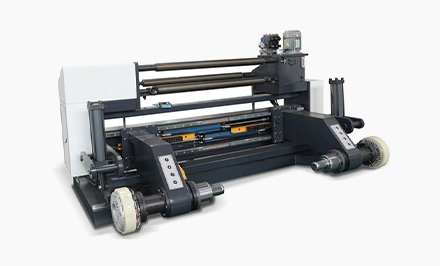

    Unwinding Part

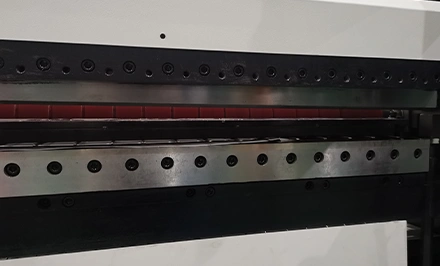

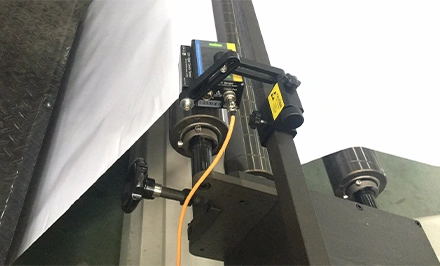

    Guillotine Knife and EPC part
    Guillotine Knife and EPC part

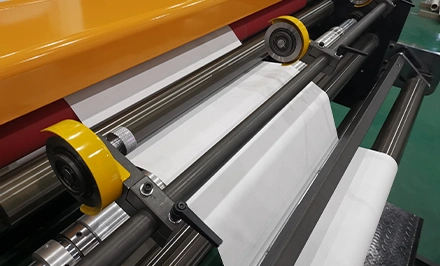

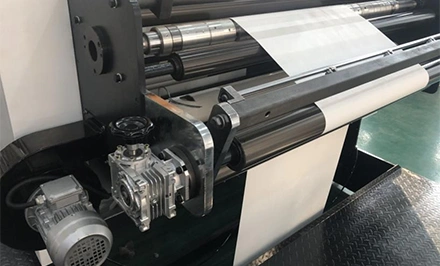

    Round Blade Knife
    Round Blade Knife

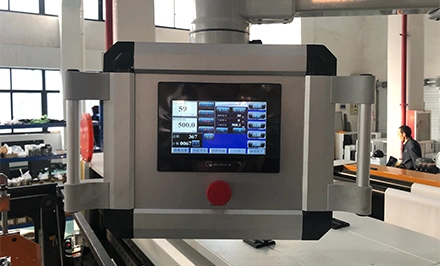

    Touch Screen
    REQUEST A QUOTE FOR YOUR MACHINES
    You receive a quote this machine according to standard configuration.
    REQUEST NOW
