SJ Series

Single Screw Double-die Film Blowing Machine Set

Name: Single Screw Double-die Film Blowing Machine Set
Brand: CHENQI
SKU: 00030
Rating: 4.9 (65 reviews)

It is used to blow various plastic films of low-density polyethylene (LDPE), high-density polyethylene(HDPE), and linear low-density polyethylene (LLDPE), etc.

Film width:
100-600 mm
Film thickness:
0.01-0.08 mm
Max. extrusion output:
40-70 kg/hr

GET IN TOUCH

Product Overview

It is widely used for packing foodstuffs, garments, textiles, daily-use articles, and industrial products, etc.

Product Specifications

Basic Parameters

Model	SJ-60	SJ-70
Screw diameter	Φ60	Φ70
Screw l/d length	32:1	32:1
Film width	100-500 mm	100-600 mm
Thickness of film	0.010-0.08 mm	0.010-0.08 mm
Power of main motor	22 kw	30 kw
Output	40-60 kg/h	50-70 kg/h
Outline dimension (L×W×H)	6200×3000×3200 mm	6500×3200×3300 mm

Optional Upgrades

Auto Loader

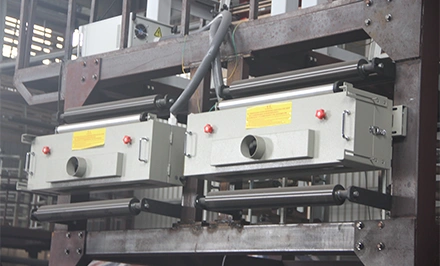

Corona Treater

High-Speed Screen Changer

Air Shaft

Metric Weight Control Device

Air Compressor

Dryer

Mixer

Product Details

REQUEST A QUOTE FOR YOUR MACHINES

You receive a quote this machine according to standard configuration.

REQUEST NOW
