MINI-45-PRO Series

Mini Mono High-speed/Performence

Name: Mini Mono High-speed/Performence
Brand: CHENQI
SKU: 00033
Rating: 4.9 (67 reviews)

Wenzhou Chenqi MINI MONO High Speed MINI MONO High-Speed Mini Film Blowing Machine is a compact, high-efficiency monolayer film blowing machine designed for small-batch, high-quality film production.

Film width:
100-500 mm
Film thickness:
0.01-0.10 mm
Max. extrusion output:
HD(50kg) LD(60kg)

GET IN TOUCH

Product Overview

It processes LDPE, HDPE, LLDPE, etc., widely used in supermarket flat bags, T-shirt bags, garbage bags, food packaging films, etc.

Features

Compact & Efficient: Floor space <2㎡, square steel frame for stability; variable frequency drive (VFD) for main motor and traction, energy-saving and smooth start.
Precise Plasticization: Barrel and screw made of 38CrMoAl alloy steel, nitrided for wear and corrosion resistance; φ45/50mm screw with 28:1 L/D ratio ensures uniform plasticization and stable output.

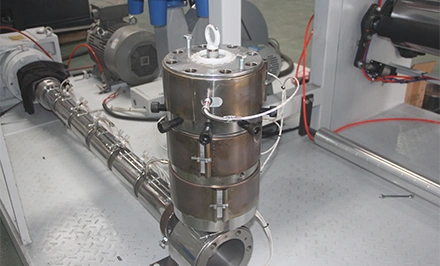

High Speed & Stability: φ60mm die head with spiral mandrel for even melt distribution; labyrinth-type air ring for uniform cooling and stable bubble; max. output: LDPE 60kg/h, HDPE 50kg/h.

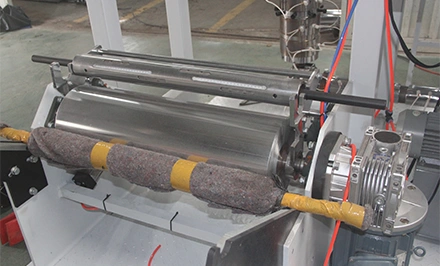

Easy Operation: Centralized electric control cabinet with PID intelligent temperature control, one-click parameter setting; friction single winder with adjustable tension for quick roll change, user-friendly for new operators.
Reliable Quality: CE/ISO9001 certified, precision-machined key components for low failure rate, lifetime maintenance support.

Product Specifications

Basic Parameters

Model	MINI-45-PRO
Film width	100-500 mm
Film thickness	0.01-0.10 mm
Max extrusion output	HD(50kg) LD(60kg)
Screw diameter	Φ45 mm
Main motor	18.5 KW
Die size	Φ60 mm Taiwan style high speed die head
Outline dimension (L×W×H)	3×1.5×3.6 m

Optional Upgrades

Auto Loader

Corona Treater

High-Speed Screen Changer

Air Shaft

Metric Weight Control Device

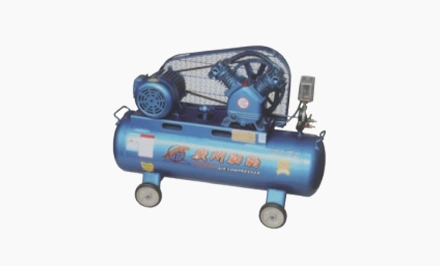

Air Compressor

Dryer

Mixer

Product Details

REQUEST A QUOTE FOR YOUR MACHINES

You receive a quote this machine according to standard configuration.

REQUEST NOW
