VEST-500×2 Automatic Vest Bag-making Machine (Two Lines)
VEST-500×2 Series

Automatic Vest Bag-making Machine (Two Lines)

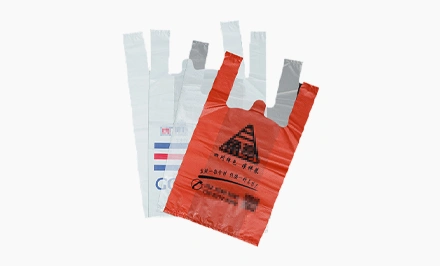

This machine can produce natural-colored and printed vest bags using HDPE, LDPE, LLDPE, and other raw materials.
  • Max Bag length:
    650 mm
  • Max Bag width:
    450 mm*2
  • Film thickness:
    0.01-0.025 mm
GET IN TOUCH
    Product Overview

    Using a computer programming control system and a stepper (servo) motor for automatic length adjustment, the entire process of feeding, sealing, cutting, punching, and conveying is completed in one go.

    Product Overview Video
    Product Specifications

    Basic Parameters

    Model VEST-500×2
    Max width of bag-making 450 mm×2
    Max length of bag-making 650 mm
    Max speed of bag-making 210 pcs/min×2
    Single-face film thickness 0.010-0.025 mm
    Outline dimension(L×W×H) 5500×1800×1600 mm
    Weight 2700 kg
    Optional Upgrades
    Punching Machine
    Punching Machine
    Conveying Table
    Conveying Table
    EPC
    EPC
    Product Details

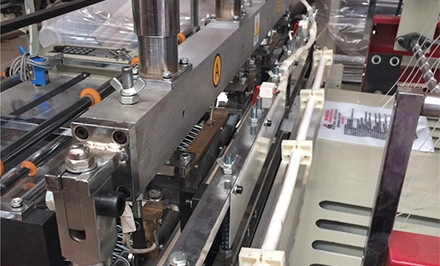

    Sealing Knife and Cutter

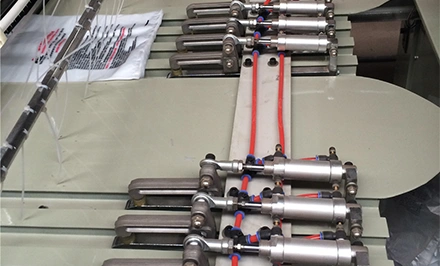

    Collecting Part

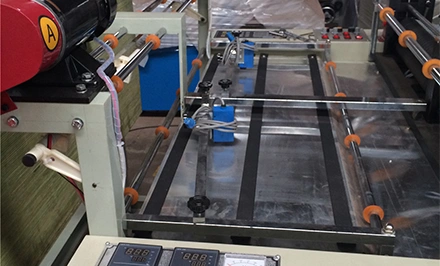

    Color Mark Photoelectric
    REQUEST A QUOTE FOR YOUR MACHINES
    You receive a quote this machine according to standard configuration.
    REQUEST NOW
