Full-Automatic Double-Channel Coreless Continuous-Roll Bag Making Machine
CORELESS-400*2 Series

Full-Automatic Double-Channel Coreless Continuous-Roll Bag Making Machine

CORELESS-400*2 Full-Automatic Double-Channel Coreless Continuous-Roll Bag Making Machine is an efficient automatic bag-making equipment, adopting double-channel parallel operation and coreless continuous-roll design, suitable for HDPE and LDPE food-grade films.
  • Bag-making width:
    100-180 mm
  • Bag-making length:
    400-1200 mm
  • Bag-making thickness:
    0.006-0.025 mm
GET IN TOUCH
    Product Overview

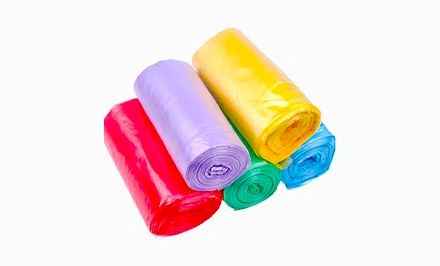

    The machine fully automatically completes feeding, edge sealing, cold cutting, point breaking, and coreless winding. With precise temperature control and photoelectric tracking, it has firm sealing and neat cutting edges, and can mass-produce supermarket continuous-rolled flat bags and fresh-keeping bags, with easy operation, stable operation, and greatly improved production efficiency.

    Product Overview Video
    Product Specifications

    Basic Parameters

    Model CORELESS-400*2
    Bag making width 100-180 mm
    Bag making length 400-1200 mm
    Bag making speed 50-200 pcs/min
    Bag making thickness 0.006-0.025 mm
    Bag making methods Coreless Garbage Bag (Star Bottom)
    Heating power 8 kw
    Temperature control zone 4 Zones
    Total power 20 kw
    Total weight 2000 kg
    Overall dimension (L×W×H) 6200×2000×1750 mm
    Optional Upgrades
    Punching Machine
    Punching Machine
    Conveying Table
    Conveying Table
    EPC
    EPC
    REQUEST A QUOTE FOR YOUR MACHINES
    You receive a quote this machine according to standard configuration.
    REQUEST NOW
