Film Blowing Machine
PP Series

Film Blowing Machine

PP film blowing machine is specialized equipment used for producing polypropylene (PP) film.
  • Film width:
    100-800 mm
  • Film thickness:
    0.03-0.11 mm
  • Max. extrusion output:
    40-70 kg/hr
GET IN TOUCH
    Product Overview

    It is produced by extruding molten polypropylene plastic downwards and blowing it into a film tube through a circular die, followed by processes such as water cooling, traction, drying, and winding, ultimately resulting in a polypropylene film.

    Product Overview Video
    Product Specifications

    Basic Parameters

    Model PP-600 PP-800 PP-1000
    Suitable material PP PP PP
    Film width 100-500 mm 150-600 mm 200-800 mm
    Film thickness 0.03-0.11 mm 0.03-0.11 mm 0.03-0.11 mm
    Max. extrusion output 40 kg/hr 55 kg/hr 70 kg/hr
    Screw diameter Φ50 Φ55 Φ65
    Screw I/d length 32:1 32:1 32:1
    Die size Ф150 Φ250 Φ350
    Air blower 1.5 kw 1.5 kw 1.5 kw
    Roller width 600 mm 800 mm 1000 mm
    Take-up motor 0.75 kw 1.1 kw 1.5 kw
    winding motor 10 N.m 10 N.m 16 N.m
    Outline dimension(L×W×H) 3.2×2×3.5 m 4.2×2.5×4 m 4.6×2.8×4.5 m
    Optional Upgrades
    Auto Loader
    Auto Loader
    Corona Treater
    Corona Treater
    High-Speed Screen Changer
    High-Speed Screen Changer
    Air Shaft
    Air Shaft
    Metric Weight Control Device
    Metric Weight Control Device
    Air Compressor
    Air Compressor
    Dryer
    Dryer
    Mixer
    Mixer
    Product Details

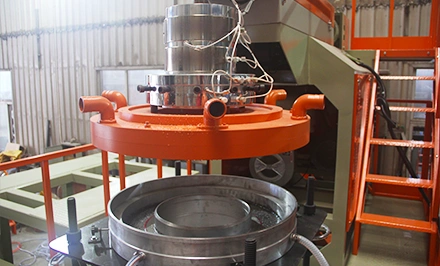

    Die Head

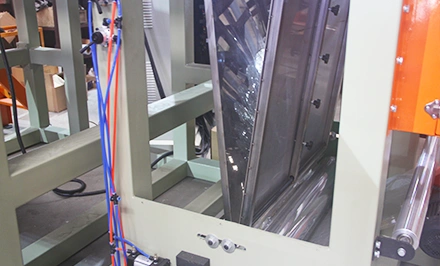

    Water-Cooled

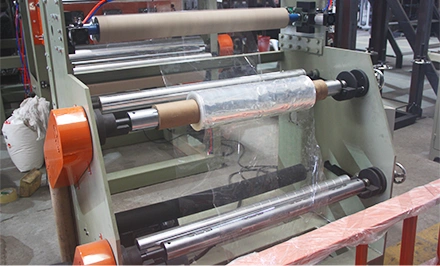

    Winding
    REQUEST A QUOTE FOR YOUR MACHINES
    You receive a quote this machine according to standard configuration.
    REQUEST NOW
