Automatic 4in1 Shopping Bag Side Sealing Machine
CQ-4in1-800 Series

Automatic 4in1 Shopping Bag Side Sealing Machine

The machine is computer equipped with a pneumatic computer control system, servo motor, and touch screen. A special 'E' type hot-cutting sealing device can make infolding and sealing for upper and down bag openings.
  • Bag width:
    250-650 mm
  • Bag length:
    250-650 mm
  • Film thickness:
    0.02-0.05 mm
GET IN TOUCH
    Product Overview

    It has the functions of preset bag width, auto counting and settable counting alarm, photoelectric detection, scan tracking, auto temperature control, auto punching for holes, etc. The machine is well-designed and easy to operate and maintain. It is suitable for making PP, OPP, HDPE, POP material, etc. The machine can make patch bag(70pcs/min), soft loop handle bag(60pcs/min), die cutter bag(100pcs/min), draw tape bag(100pcs/min). Also, we can make a single-function machine according to the customer's requirement, such as a patch bag machine, soft loop bag machine, die cutter bag machine, and draw tape bag machine.

    Product Specifications

    Basic Parameters

    Model CQ-4in1-800
    Bag width 250-650 mm
    Bag length 250-650 mm
    Film thickness 0.02-0.05 mm
    Total power 8 kw
    Outline dimensions (L×W×H) 7600×3000×1850 mm
    weight 3000 kg
    Optional Upgrades
    Punching Machine
    Punching Machine
    Conveying Table
    Conveying Table
    EPC
    EPC

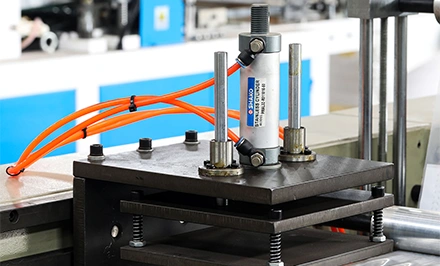

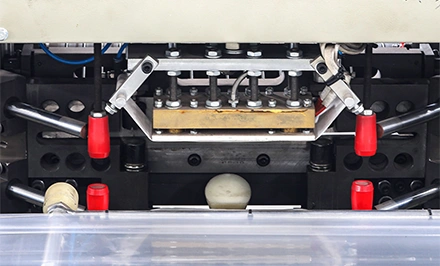

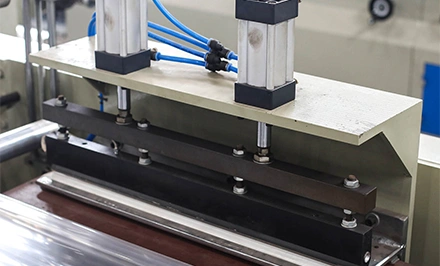

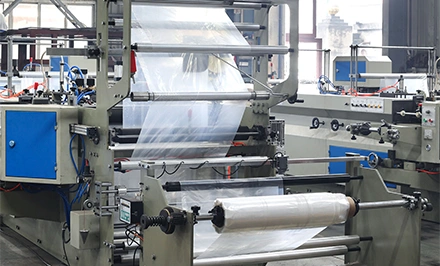

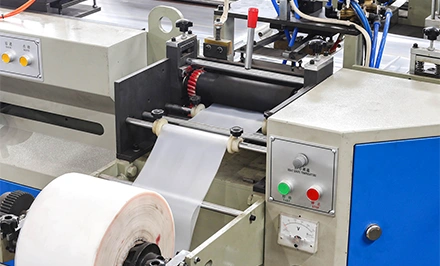

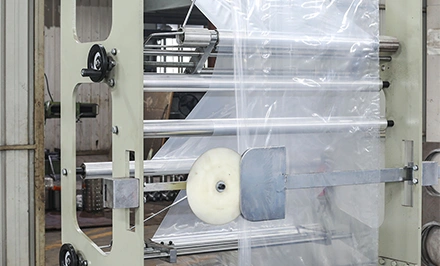

    Product Details
    REQUEST A QUOTE FOR YOUR MACHINES
    You receive a quote this machine according to standard configuration.
    REQUEST NOW
