Automatic Twisted Paper Handle Making Combi Pasting Machine
CQ-THA Series

Automatic Twisted Paper Handle Making & Pasting Machine

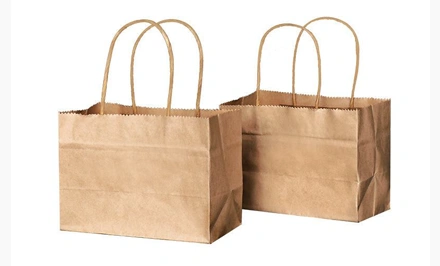

The fully automatic twisted rope handle attaching machine is mainly used in conjunction with a semi automatic square bottom paper bag machine. It can quickly produce twisted rope handles, which can then be manually attached to the paper bag to transform it into a handle bag. The machine uses two rolls of narrow width paper and one roll of paper rope as raw materials. It forms the handle by gluing the paper rolls and rope together and then gradually cutting them. In addition, the machine also has automatic counting and automatic gluing functions, which can greatly improve the efficiency of subsequent processing operations.
  • Patch length:
    152/190 mm
  • Rope spacing:
    75/95 mm
  • Paper width:
    30/40 mm
GET IN TOUCH
    Product Specifications

    Basic Parameters

    Model CQ-THA
    Patch length (A) 152/190 mm
    Rope spacing (B) 75/95 mm
    Paper width (C) 30/40 mm
    Paper rope length 360 mm
    Paper rope height (C1) 100 mm
    Rope diameter Φ2.5~5 mm
    Bag width 250-400 mm
    Bag height 250-450 mm
    Top opening size Over 130 mm
    Production speed 30-40 pcs/min
    Servo motor power 750 W
    Total power 380 V, 10 kW, 50 Hz
    Overall dimension (L×W×H) 6000×1600×1500 mm
    REQUEST A QUOTE FOR YOUR MACHINES
    You receive a quote this machine according to standard configuration.
    REQUEST NOW
