JYS High-Speed Paper Shopping Bag Making Machine V-Shaped Bottom 380V/220V PLC-Controlled

JYS High-Speed Paper Shopping Bag Making Machine V-Shaped Bottom 380V/220V PLC-Controlled

Overview
Recommended Products

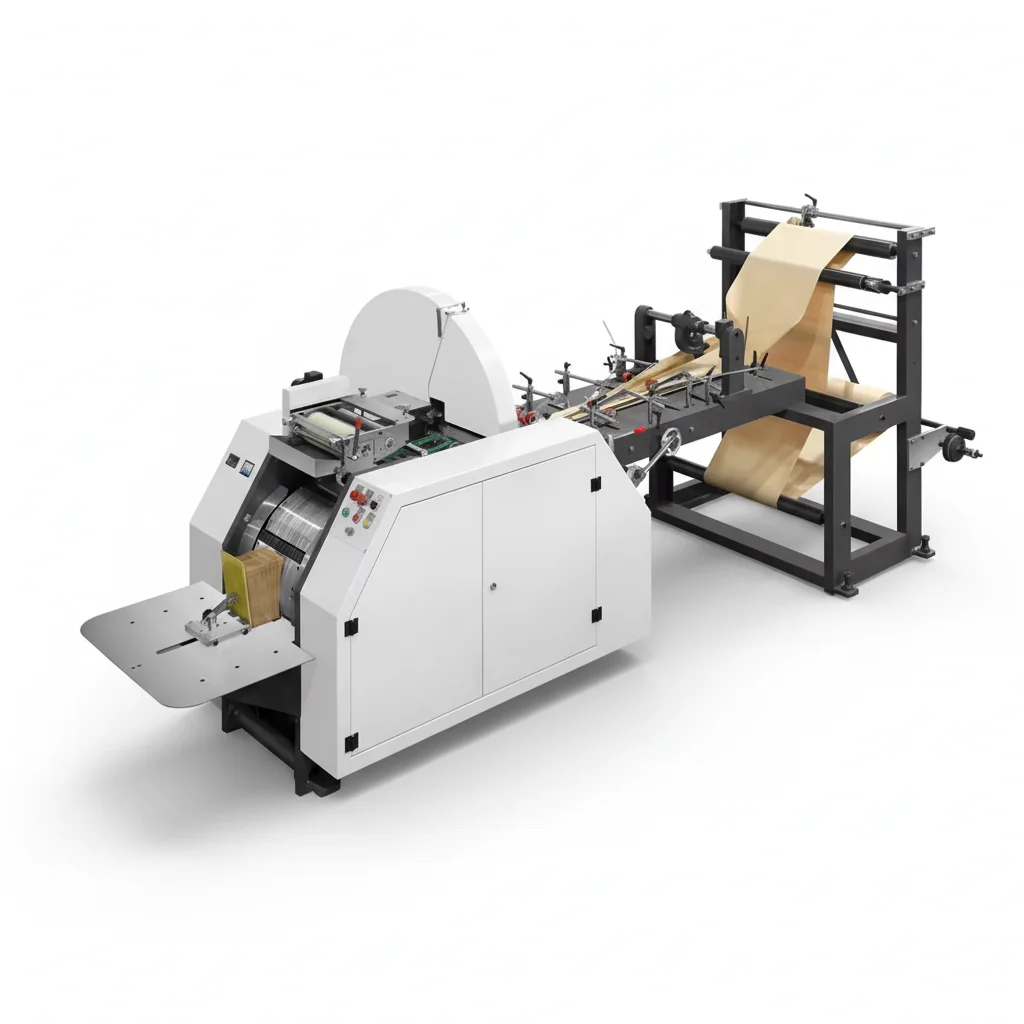

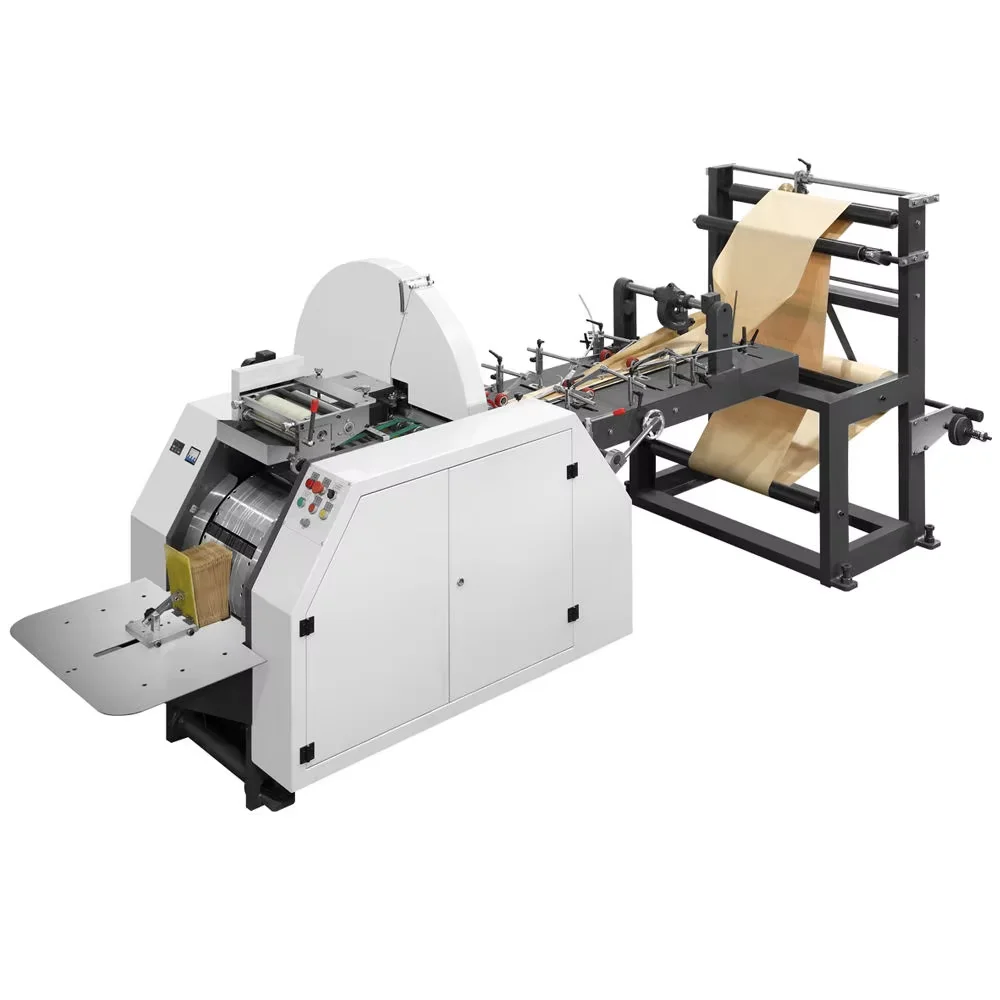

Product Description Introduction: It is designed to manufacture V bottom paper bags from paper roll in blank or printed, and can complete side gluing, tube forming, cutting, bottom impressing, bottom gluing, bottom forming and final product output within on time. Controlled by PLC system, equipped with touch screen and servo motor for bag length control. This machine has the advantages of high speed, high production efficiency and adjustment range.Its an ideal machine for making different paper bag, snack food paper bag, bread paper bag, dry frut bag and environment-friendly paper bag.

JYS-400/650/850 Mechnical Paper Bag Machine

1.lt is suitable for paper between 40-80gsm.

2.It can control bag length through human-machine interface.

3.The PLC system can calculate parameters correctly.

4.It is equipped with an accurate photocell system.

Model	JYS-400	JYS-650	JYS-850
Bag Weight	40-80g/m2	40-80g/m2	40-80g/m2
Bag Length	160-450mm	220-650mm	200-850mm
Bag Width	80-250mm	80-300mm	80-350mm
Speed	100-500bags/min	100-400bags/min	100-400bags/min
Weight	1600kg	1800kg	2000kg
Max Paper Roll Width	800mm	900mm	1000mm
Power	4kw	4kw	4kw
Insert Size	20-120mm	20-120mm	20-120mm
Machine Size (WxLxH)	4200×1500×1800mm	4300x1600x1900mm	4500x1700x1900mm

Frequently Asked Questions (FAQ)

Q1： How is the after-sales service? How long does the machine warranty last?
A1： Once you purchase our machine, we guarantee to provide comprehensive lifelong after-sales service, including repair, technical support, training, and consultation. Our after-sales team will provide you with thoughtful service and help you solve any problems or difficulties encountered in using machine company products. All machines we sell come with a 12-month warranty.

Q2： What technical support does your company provide?
A2： We provide multiple technical support channels, including phone, online chat, and expatriate personnel. You can find all the information about technical support on our website. We are committed to providing our customers with the best support services and ensuring that all questions receive timely and professional responses.

Q3： How to purchase products from your company?
A3： You can purchase our products through our company's official website or search for our authorized agents in the market. If you encounter any problems during the purchasing process, our team will be available to provide assistance and support at any time.

Q4： Do you need an agent in your factory?
A4： We need to hire agents, please feel free to inquire for more details.

Q5： What is your delivery time?
A5： Usually delivered within 30 days. But it depends on the order and machine model.

Q6： How long can your machine work continuously?
A6： Our machines can work 24 hours a day without interruption, which not only increases production but also saves energy.

Contact Us

If you have a need for producing shopping bags, garbage bags, and roll up bags, you can contact us for free consultation and quotation. Our professional sales team is always ready to assist you and provide you with a comprehensive solution for plastic bag production.
